40.5 All Data Report

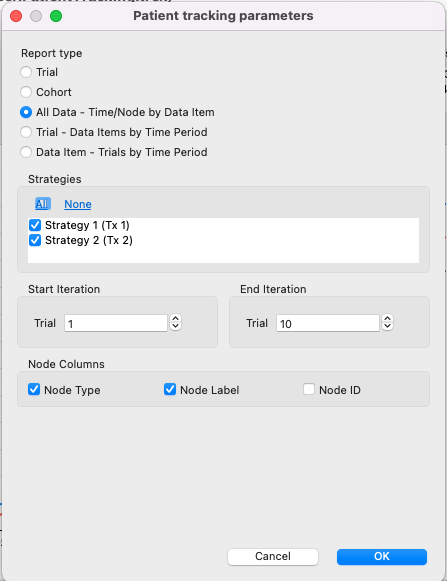

The All Data report outputs all data collected during the analysis. When selected, the following dialog allows you to further specify the data to present. Specifically, choose a trial range and which strategies to include. You can also choose which node-related information you wish to include in the report - node type, node label and/or node ID.

With the selections above, the first 10 trials data for only the first strategy are included in the report.

Note: If you run PSA & Trials or EVPPI/PSA & Trials, you can also select a range for each outer loop iteration (PSA and/or EVPPI).

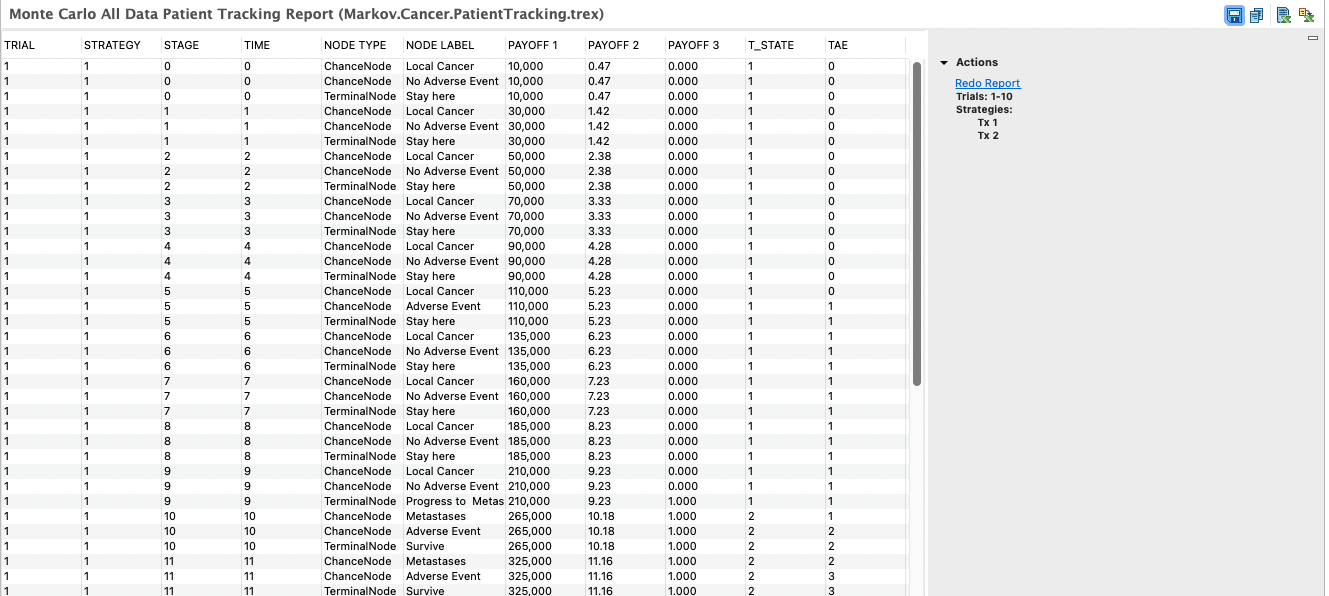

The All Data Report can be used to see the full path of each patient as it travels through the model. Note the data starts with Trial 1, but has a separate record for every node that patient hits in the model. Meanwhile the other data (like cost/Payoff 1 and effectiveness/Payoff 2) is also collected.

This report can be exported to Excel via the "Open in New Excel Spreadsheet" icon to the top right of the report data pane. Once the data is in Excel, it can be further formatted to make it easier to see the path of the patient.

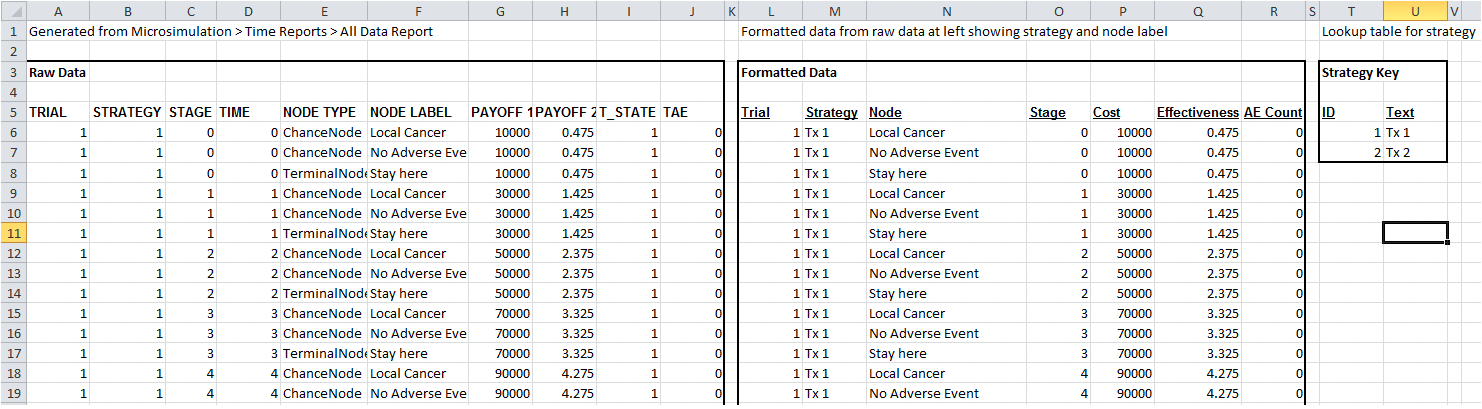

You can open the companion document Markov.Cancer.TimeReporting.xlsx to see how the data can be formatted for examination in Excel.

In the Excel document...

• Columns A-J come directly from the patient tracking report created above.

• Columns L-R are reformatted versions of the data to make it easier to follow.

• Columns T-U are a lookup table to translate the strategy ID to text.

The data now shows the path each of the first 10 patients took as it passed through the model along with the value for cost and effectiveness accrued at that time. This can be very useful for debugging/validating models.

Note that the All Data Report can also be exported directly to an Excel compatible file format via the "All Data (Export to CSV)" secondary report link.
